ROAD GLIDE FLTR Side SPLITSCREENS Installation Tips
Thanks for your purchase! In a perfect world where money was no object, you might have your Harley-Davidson® Tech be responsible for the installation. In the real world however, many of us are “not without skills” and elect to perform the installation ourselves (with or without the help of an appropriate and helpful Harley-Davidson® Service Manual).
DISCLAIMER: Elegant Solutions Inc. dba Motorcycle Vent Screens is obliged to disclaim responsibility for any damage or injuries incurred as a result of your purchase and/or installation efforts.
(ROAD GLIDE FLTR Vent Screens Installation Tips Complete with Detailed Photographs)
🔎 ROAD GLIDE Side SPLITSCREENS Installation Tips 🔍
[NOTE: for Center SPLITSCREEN installation instructions, see the appropriate CUSTOMER SUPPORT page (Password Required).]
Among the tools required for the Side SPLITSCREENS installation are:
TORX BITS: T-25 (wind deflectors); T-30 (turn signals) Fairing Removal
ALLEN BITS: 1/8” (or Phillips); 3/16” (@ speaker openings) Windshield and Fairing Removal
The FLTR Side SPLITSCREENS installation involves removing the following (in order):
🔎 Air Duct Assembly (ADA);
🔎 Outer Fairing (see instructional video below);
🔎 Headlamp Bezels (these only need to be loosened)
ROAD GLIDE FLTR Vent Screens Installation Tips
FLTR Side SPLITSCREENS installation with our (optional) signature
VS badge on the right SPLITSCREEN facing forward:
ROAD GLIDE FLTR Side SPLITSCREENS Installation Tips
The following Video Tutorial will suffice for those who don’t need instructions on Road Glide® Outer Fairing Removal/Reinstallation
🔎Side SPLITSCREENS Installation Tutorial Video (3:09)🔍
NOTE: the terms “Headlamp Bezel” and “Headlamp Nacelle” are used here interchangeably

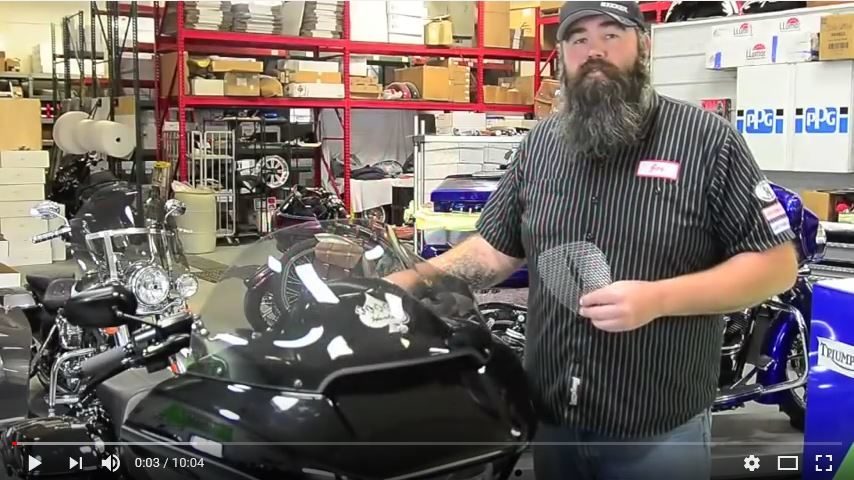

Need to review Outer Fairing Removal/Reinstallation? Please see the following Public YouTube Video:
🔎Outer Fairing Removal/Reinstallation Tutorial Video (10:04)🔍
Public YouTube Video (by Klock Werks®* ….premium windshields) demonstrating outer fairing removal and re-installation:
* IRONIC STORY: In May of 2015, Dennis, our owner/president purchased a pair of Klock Werks® side vent screens (then $75😬) for his 2015 Road Glide®. Although disappointed that a center vent screen was never offered to protect his neck and face, he did appreciate K-W’s excellent screen installation video (public) which is mostly about the removal and reinstallation of the Road Glide® outer fairing (80% of the 10 minute video). Two years later, Dennis decided to open Motorcycle Vent Screens and offer a complete three screen package to fellow Road Glide® owners (see “the rest of the story” below). Kudos to “Klock Werks Joe” for a wonderful instructional video which demystifies fairing removal and reinstallation👍:
“The rest of the story”: After suffering several bee/wasp stings, Dennis attempted to create his own center vent screen and quickly identified the difficult funnel-shaped vent as the reason no commercial center screen solutions existed. After extensive R&D, a unique Center SPLITSCREEN solution evolved using thick high quality materials. Upgrading the side screens to “quality match”, he decided to manufacture and offer the 3 screen package as a high quality fairing accessory; a premium product of appropriate quality for Harley-Davidson’s® premium touring bike. Motorcycle Vent Screens was subsequently established May of 2017 offering our beefy, powder-coated 5-Star Rated (made in USA) product (Triple SPLITSCREENS) to fellow Road Glide® owners at under $70😇.

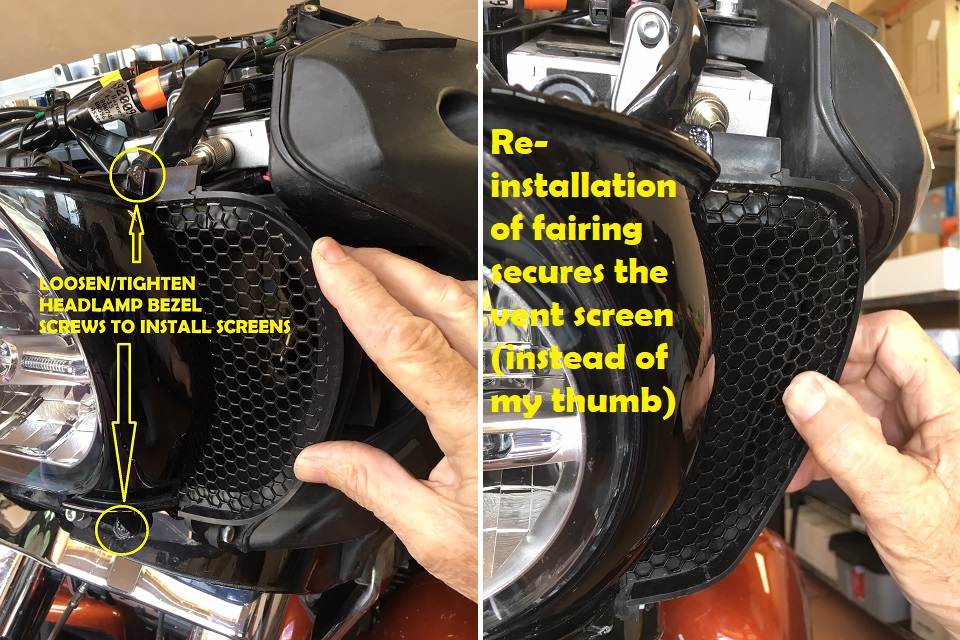

🔎 contrary to Joe’s instruction, there’s no need to remove Headlamp Bezel. Simply loosen Headlamp Bezel Screws, pull Bezel out enough to slip side screen into place behind it;
🔎 When positioning the Side SPLITSCREENS behind each curved Headlamp Bezel, if you’ll gently FLEX the screens while inserting them (rather than bending them) they’ll stay in place with spring tension while you tighten the bezel screws. SPLITSCREENS are thick enough for the bezel to clamp our screen in place as you tighten the bezel screws (no need to use the adhesives the seller of the thinner screens provides);
🔎 When re-installing your Road Glide windshield, be extraordinarily careful to avoid any lateral stress on the 4 windshield screws (it is quite easy to cross-thread them into the soft brass bushings).

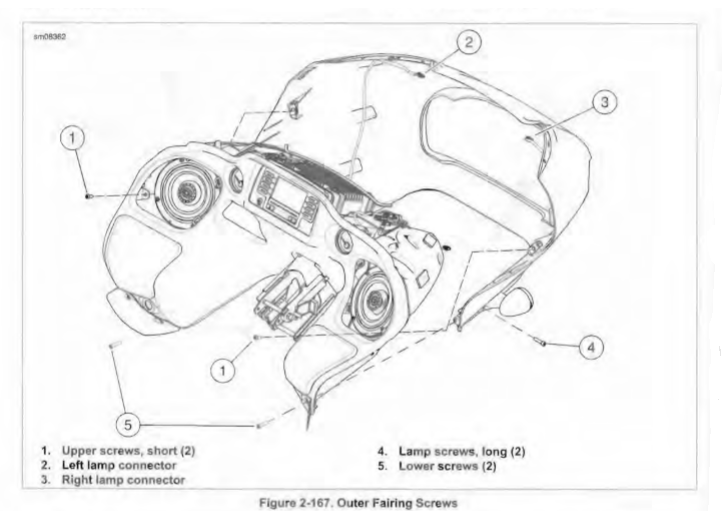

CLICK the following link (or image) for access to 6 pages from the 2015 Harley-Davidson® Road Glide® Service Manual which focus on the outer fairing which needs to be removed to install the Side SPLITSCREENS: 2015 RG Fairing – Service Manual
